Crawler Loader Rental

John Deere 755K

Rates Day Week Month
Regular
$1,542 $6,167
$18,500
Corporate
$1,465 $5,858
$17,575
Guarantee logo

We honor the lowest rate on all long term rentals

Product Image

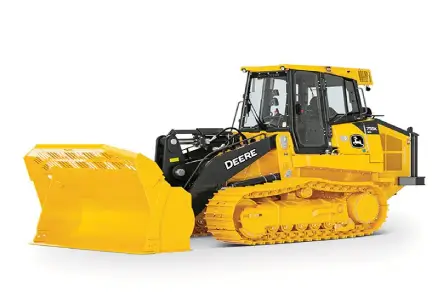

The John Deere 755K is a tough and reliable crawler loader that is perfect for construction, landscaping, and agricultural applications. With a digging depth of over 10 feet and a carrying capacity of over 4,000 pounds, this machine can handle even the most challenging jobs. Plus, it comes with an intuitive control system that makes it easy to operate, even for novice users.
Engine
The John Deere 755K crawler loader has a 6.8-L John Deere PowerTech™ engine with boosted horsepower and an Eco mode for maximum fuel economy without loss of performance. The auto-idle feature helps save fuel by reducing engine speed when the crawler loader is not moving and no functions are being activated. Plus, it’s FT4/Stage IV-compliant.
Hydraulics
The John Deere 755K crawler loader is designed with a dual-path hydrostatic (HST) transmission that allows you to carry a full load through turns without losing material. The HST drivetrain and load-sensing hydraulics deliver fatigue-beating, low-effort response and control, at all times and in all conditions. And, the hydraulically driven fan runs only as needed, for cooling and fuel efficiency.
Transmission
The John Deere 755K crawler loader is the perfect machine for busy jobsites. Its counter-rotating tracks provide superior maneuverability, and its infinite variable speed range allows you to work at your own pace.
Controls
The John Deere 755K crawler loader offers single-lever joystick or two or three-lever hydraulic controls to choose from, depending on your operator’s style. You can also control the throttle using buttons on the sealed-switch module.
Serviceability
The John Deere 755K crawler loader is designed for durability and easy cleaning. With a heavy-duty undercarriage, swing-out side shields, and tilt-out grille, this machine makes it easy to keep your work area clean and debris-free.

Dimensions

Overall length, mm (ft/in) 6824 (22 ft 5 in)
Max. height, mm (ft/in) 3330 (10 ft 11 in)
Track length on ground, mm (inches) 2588 (102)
Ground clearance, mm (inches) 432 (17)
Track gauge - standard, mm (ft/in) 1880 (6 ft 2 in)
Shovel 1 width, mm (ft/in) 2591 (8 ft 6 in)
Shovel 1 dump height 45° max, mm (ft/in) 2950 (9 ft 8 in)
Bucket pin height, mm (ft/in) 4080 (13 ft 4 in)
Bucket reach - max, mm (ft/in) 1100 (3 ft 7 in)
Digging depth, mm (inches) 167 (6.6)
Steering clutches and brakes No

CAPACITIES

Fuel Tank, ltr (gallons (US)) 326 (86)
Implement hydraulic tank, ltr (gallons (US)) 103 (27.2)
Shovel 1 capacity, m³ (yd³) 2.5 (3.2)

PERFORMANCE

Ground bearing pressure - standard, kPa (PSI) 69.6 (10.1)
Static tipping load shovel 1, kg (lbs) 15362 (33867)
Breakout force - max, kN (lbf) 197 (44287)
Voltage, V 24
Alternator output, Amp 100
Pump type Piston Pump - Load Sensed
Pump flow, lt/min (gallons (US) / min) 246 (65)
Relief pressure, kPa (PSI) 26028 (3775)

WEIGHTS

Operating Weight, kg (lbs) 20492 (45178)
